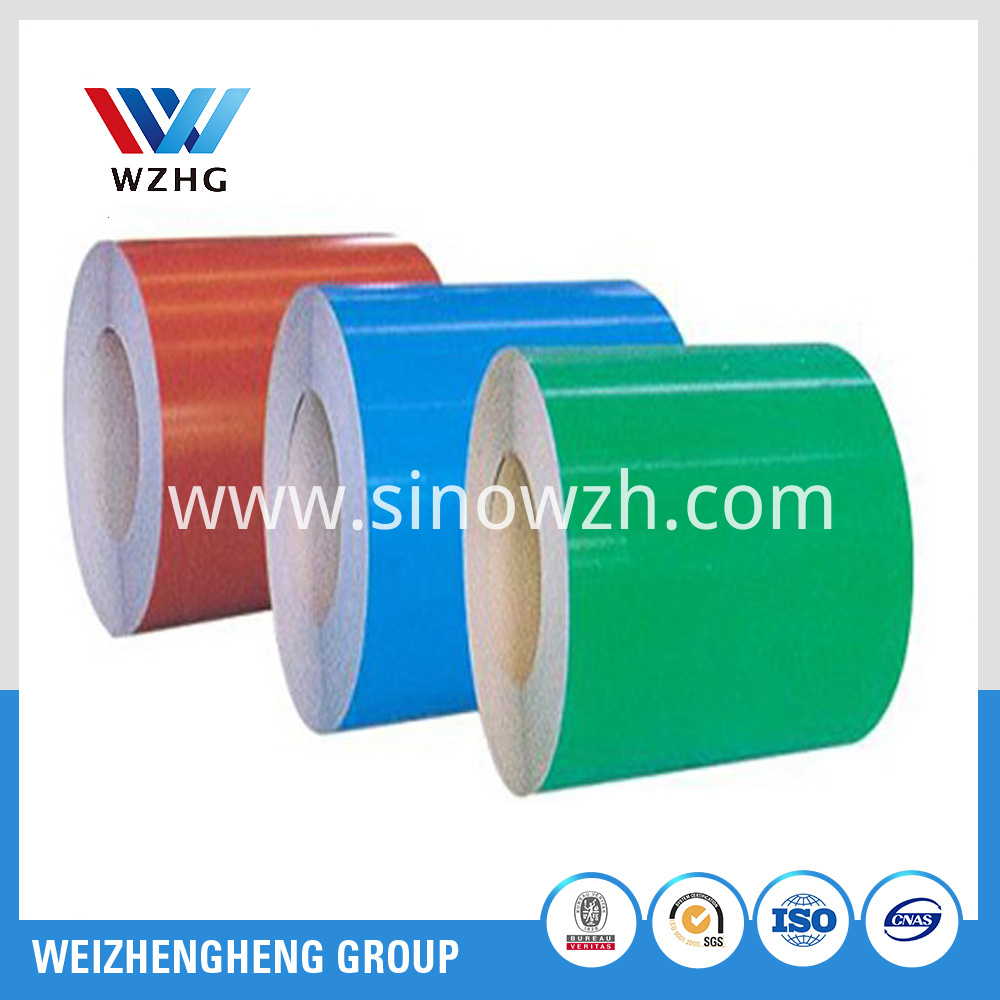

DX51D prepainted galvanized steel coil

Share to:
    Payment Type: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 25 Ton
    Delivery Time: 15 Days

Basic Info

Model No.: ppgi steel coils

Standard: ASTM, JIS

Steel Grade: Q235

Certification: ISO, SGS, BV

Surface Treatment: Coated

Technique: Cold Rolled

Application: Container Plate, Construction Building Material

Edge: Slit edge

Stock: Not Stock

Name: DX51D 600-1250mm Width Prepainted Galvanized Steel

Thickness: 0.15-0.7 Mm

Width: 600-1250 Mm

Color: Any RAL Color

Paint Coating: 25/5-7 Mic

MOQ: 25 Tons

Steel Coil ID: 508/610 Mm

Technial: Cold Rolled And Hot Dipped

Origin: China

Additional Info

Packaging: Standard seaworthy package

Productivity: 500 tons per month

Brand: WZH

Transportation: Ocean

Place of Origin: China

Supply Ability: 500 tons per month

Certificate: ISO 9001:2008

HS Code: 72107000

Port: Tianjin

Product Description

DX51D 600-1250mm width prepainted Galvanized Steel /ppgi/prime Steel Coil/steel sheet

PPGI is the material which uses galvanized steel as the basic substrate metal. PPGI is prepainted galvanized steel, also known as precoated steel, coil coated steel, color coated steel etc.A Galvanized Steel Sheet in coil form is cleaned, pretreated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates.These coatings are applied in a continuous process known as Coil Coating.The steel thus produced in this process is a prepainted, prefinished ready to use material.

PPGI 17

1) Introduction: PPGI Coils Ppgi Steel Coil PPGI Prepainted Galvanized Steel Coil

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.

The term is an extension of GI which is a traditional abbreviation for Galvanised Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.

PPGI 64PPGI 34

2) Specifications :

Commodity

PPGI/PPGL steel coil

Types:

Commercial / Drawing / Deep Drawing / Structural quality

Width

600-1250mm

(usually 914/1000/1200/1219/1220/1250mm)

Thickness

0.15-0.9mm

Basic zinc / aluzinc coating

20-120g/m2

Paint Material

PE or PVDF

Color

Usually Sea blue, white grey, red green or any RAL color

Paint coating :

12-25 mic on top / 5-7 mic back side

Hardness

Normal soft /Semi hard / full hard

Coil ID

508mm or 610mm

Coil weight

3-5 MT per coil

Package:

Standard seaworthy package (plastic film +waterproof paper +steel sheet + edge protector +packing steel strips + C channel )

PPGI 72
3) Prepainted Steel Coil: Any RAL Color

PPGI 06


ppgi color coil price list steel coil gi coil

SGCC PPGI coil Prepainted Galvanized Steel Coil manufacturer China supplier

4) Application: PPGI PPGL Steel Coil Used for corrugated roof sheet or wall cladding

color steel sheetPrepainted roof sheet YX750 950 (4)ppgi sheet for temporary house

Packaging & Shipping


1) PPGI COIL package:

ppgi coils price


bonny

Looking for ideal Color Metal Steel Roll Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Blue Ppgi Coils are quality guaranteed. We are China Origin Factory of 0.3 Mm Color Coated Steel Coil. If you have any question, please feel free to contact us.
